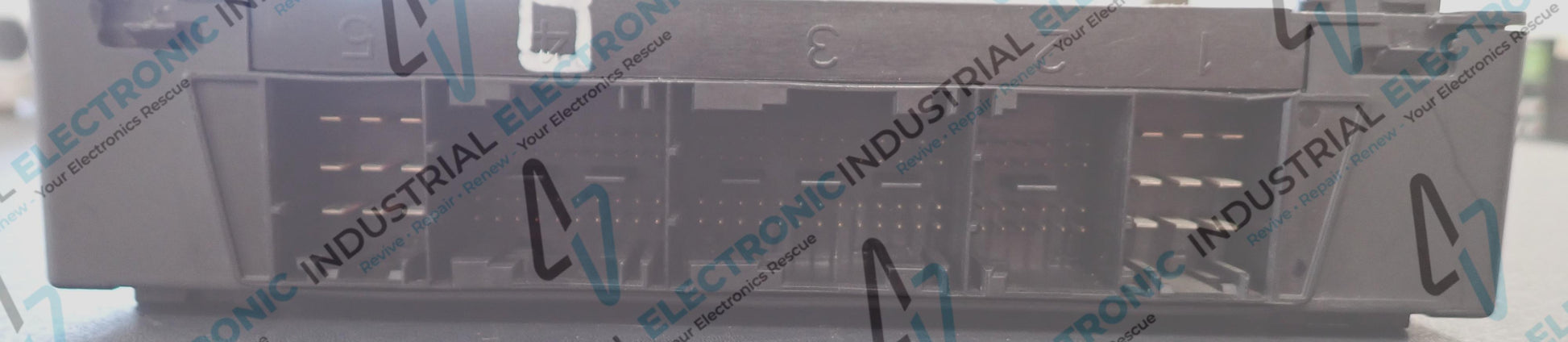

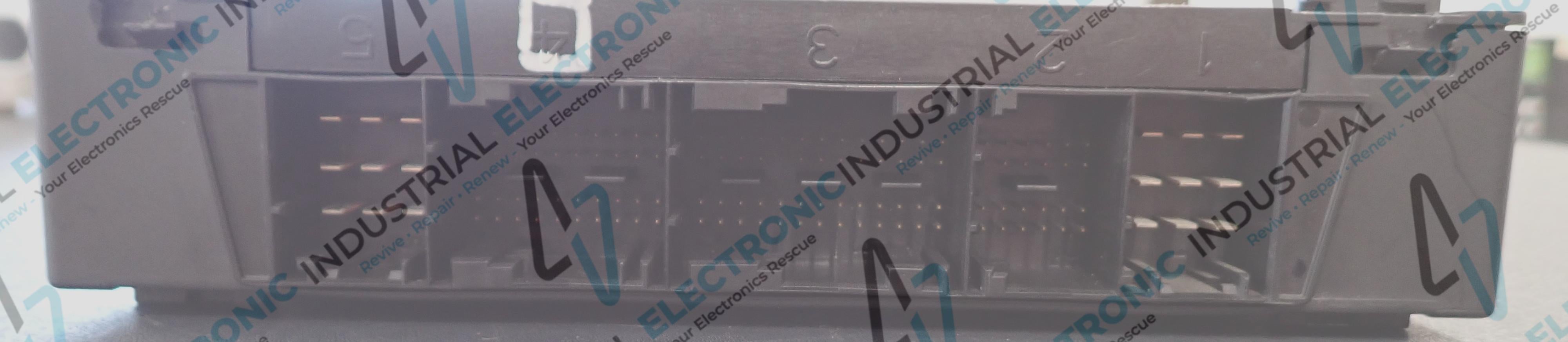

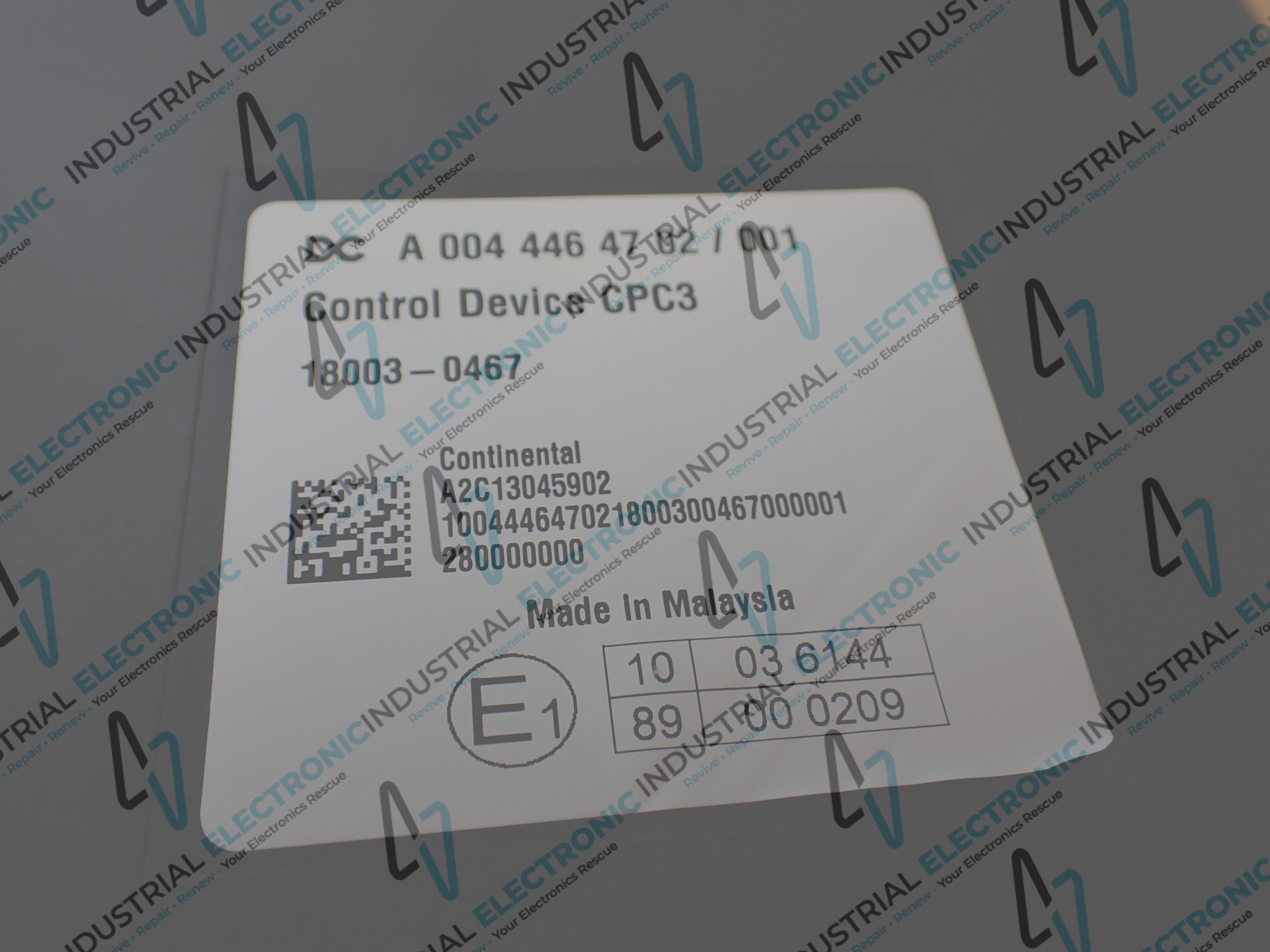

CPC3 Mercedes Actros / Freightliner

This is a repair service for this CPC unit

• A 003 446 28 02
• A 003 446 29 02
• A 003 446 30 02
• A 003 446 31 02
• A 003 446 56 02
• A 003 446 58 02
• A 003 446 61 02
• A 003 446 63 02
• A 003 446 65 02
• A 003 446 70 02
• A 003 446 72 02
• A 003 446 73 02
• A 003 446 74 02
• A 003 446 75 02
• A 003 446 76 02
• A 003 446 77 02

Common fault codes that indicate a faulty CPC3 CPC ECU are:

• B60D03 – AGND_01 short to UB
  Pin 10A17.II-24/17 at control unit 10A17: Generation 3 common powertrain controller (CPC) control unit (CU) has short circuit to positive.
• 0BF0E3 – FG1- short to UB
  The electrical line from pin 10A17. II-24/20 to the component ’10B03: Foot throttle actuator’ has a short circuit to battery voltage.
• ADFFEE PMC: error status for features
  The software monitoring function has detected a fault in the control unit.(10A17: Generation 3 common powertrain controller (CPC) control unit (CU))
• EEF7ED CPC internal – EEPROM data verification
  Fault in parameterization of control unit
• ACFFEE The watchdog function has detected an internal fault.
  Watchdog Reset error
• 2AF3EE AG: Automatic mode not available
  The CAN signal from control module 12A10: Transmission control unit (TCM) is faulty.
